GRIPPERS FOR SPECIAL TASKS

SERIES LG1000

DOWNLOAD

• LG1008     LG1010     LG1012     LG1015

SERIES LGG

• Direct internal gripping via rubber knobs
• No gripper jaw production required

DOWNLOAD

• LG15-35     LG35-100     LG100-135

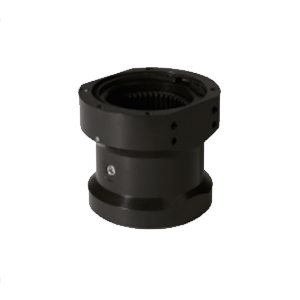

SERIES RG

• For workpiece diameters up to 58 mm
• Automatic reset when venting

DOWNLOAD

• RG0-30    RG10-60

SERIES ST

• Adjustable stroke via scale ring from 0 to 2 mm or 1.5 mm
• Single-acting pneumatic cylinder with spring return

DOWNLOAD

• ST36    ST40

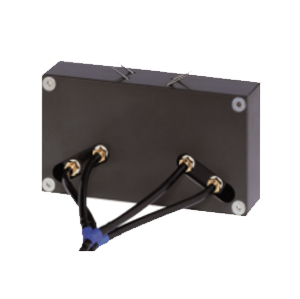

SERIES SCH

• Adjustable stroke by shifting the pneumatic cylinder in an elongated hole
• Synchronized penetration by both pairs of needles

DOWNLOAD

• SCH20    SCH23

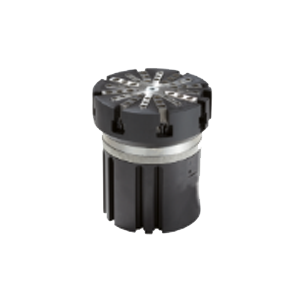

SERIES GS

• Expanding stroke adjustable from outside via adusting ring
• T-Slot guide for high forces and moments capacity

DOWNLOAD

• GS65     GS810     GS1015

SERIES GSI

• Stroke of spread jaws adjustable to fi t bore diameter of workpiece
• Spread jaws to position the O-ring in the groove of the workpiece

DOWNLOAD

• GSI206

SERIES HM1000

• Integrated O-ring in contact plate to assure a secure hold of the work piece
• The gripper is constantly ready to grip. Pressurized air should be only applied to release workpiece

DOWNLOAD

• HM1030     HM1046     HM1078     HM1097
